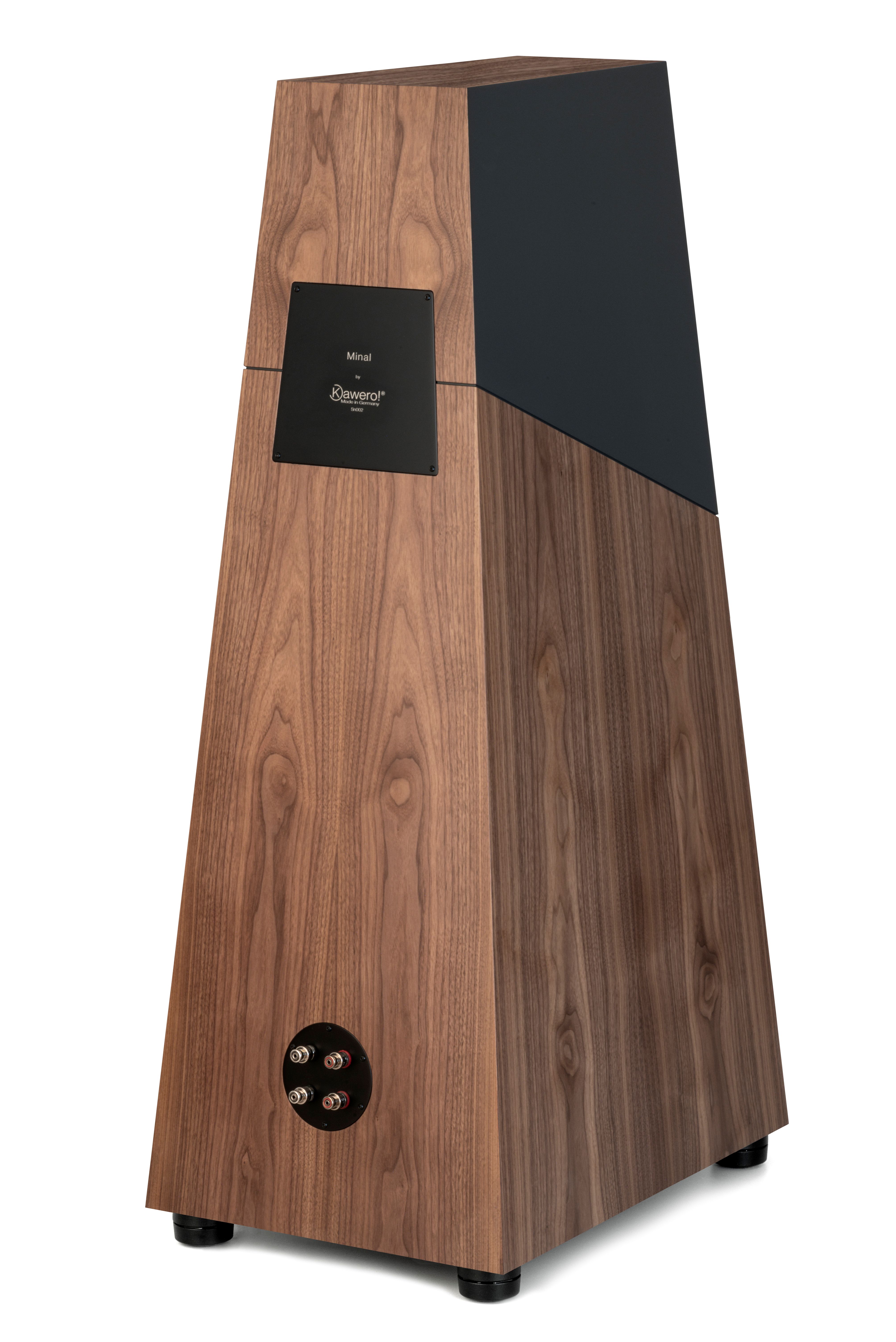

Minal

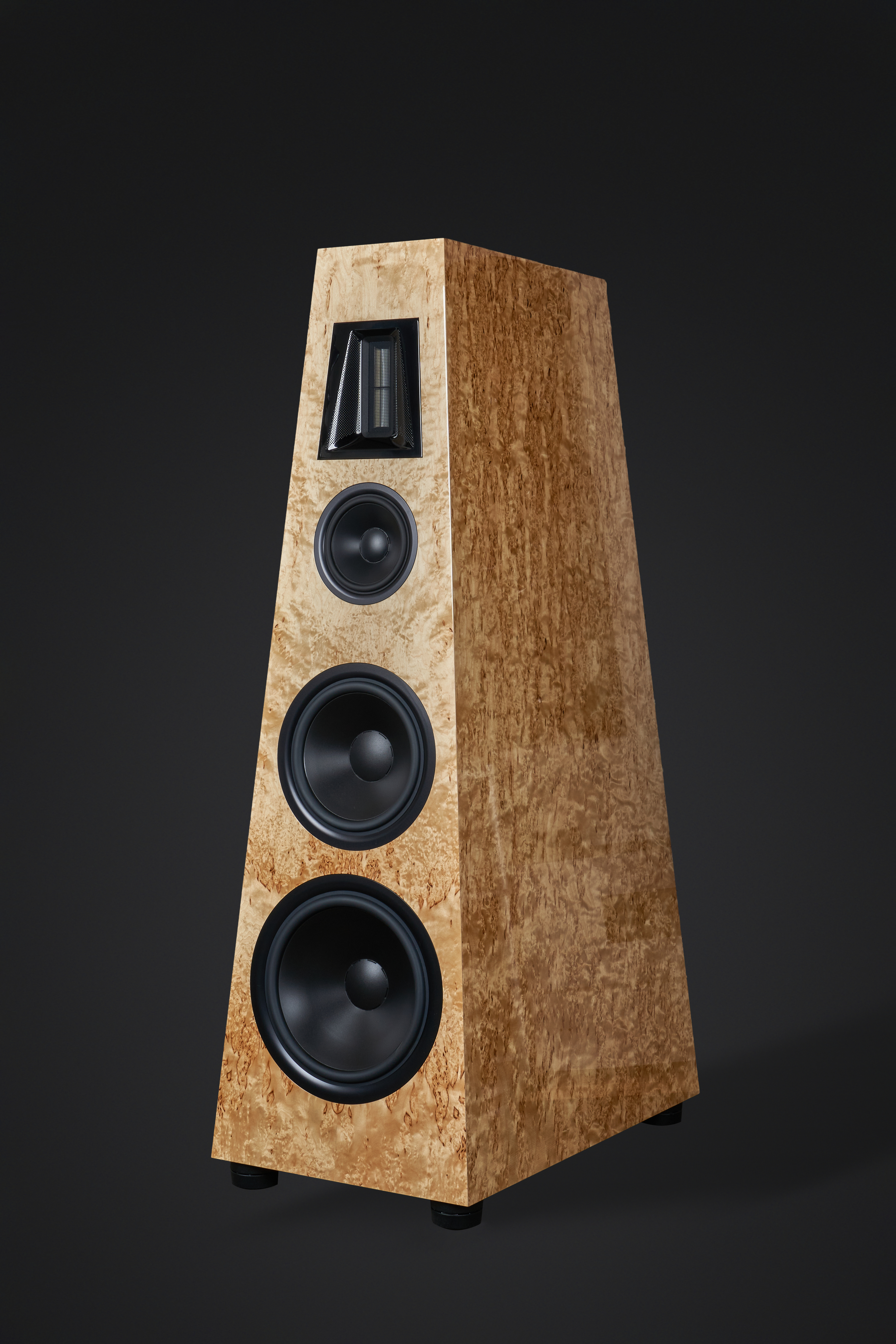

Our newest big speaker in the Kawero line, the Kawero® Minal, features state of the art German engineering, state of the art materials and hightech precision manufacturing processes to achieve a listening performance which was previously unattainable in the world of high end speakers.

Minimizing structural vibration was taking special care for:
We use German made Panzerholz for the cabinet (in a proprietary mix to form an unique sandwich construction). Additionally a special heavy foil is used to apply constraint layer damping.

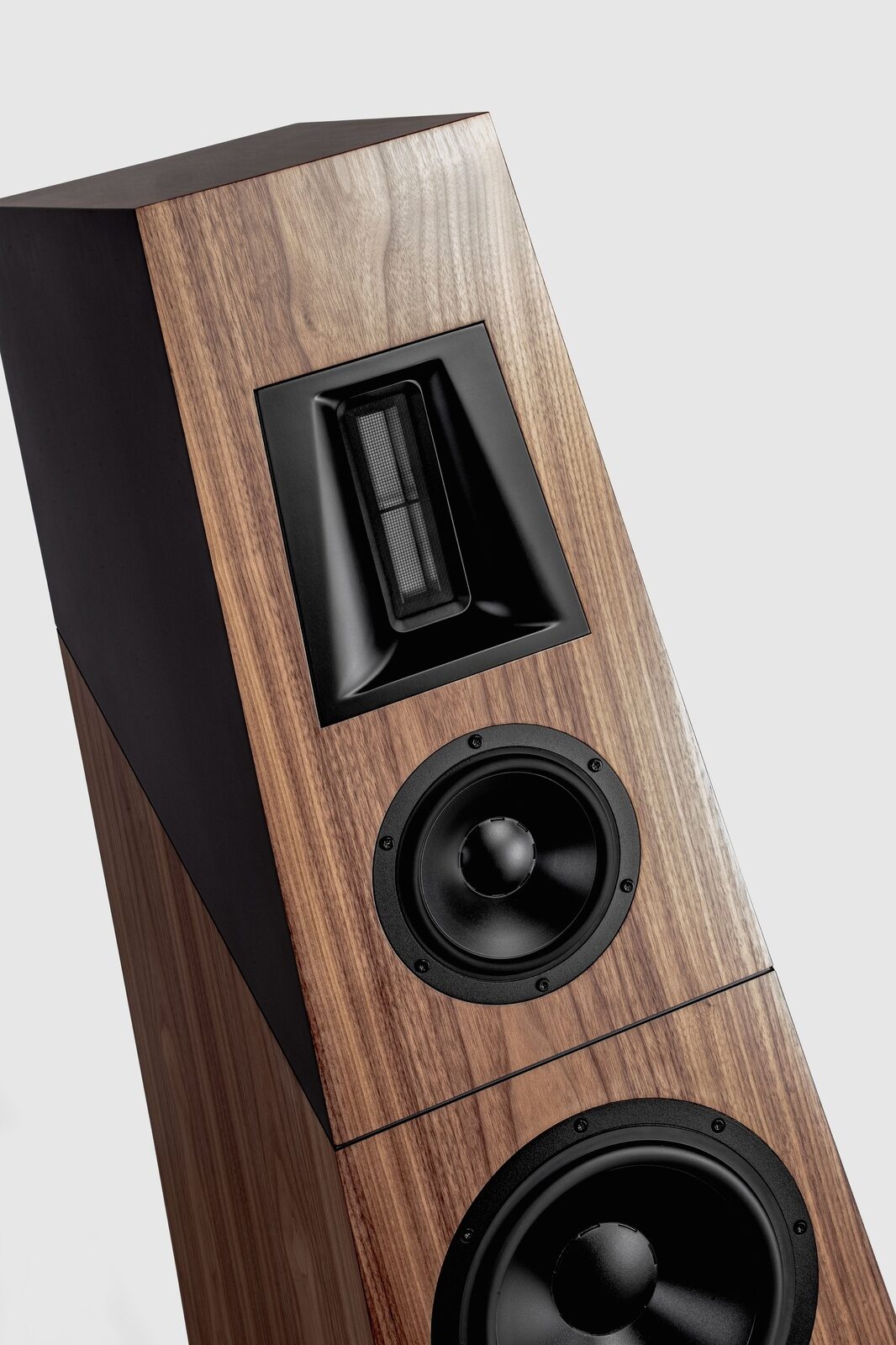

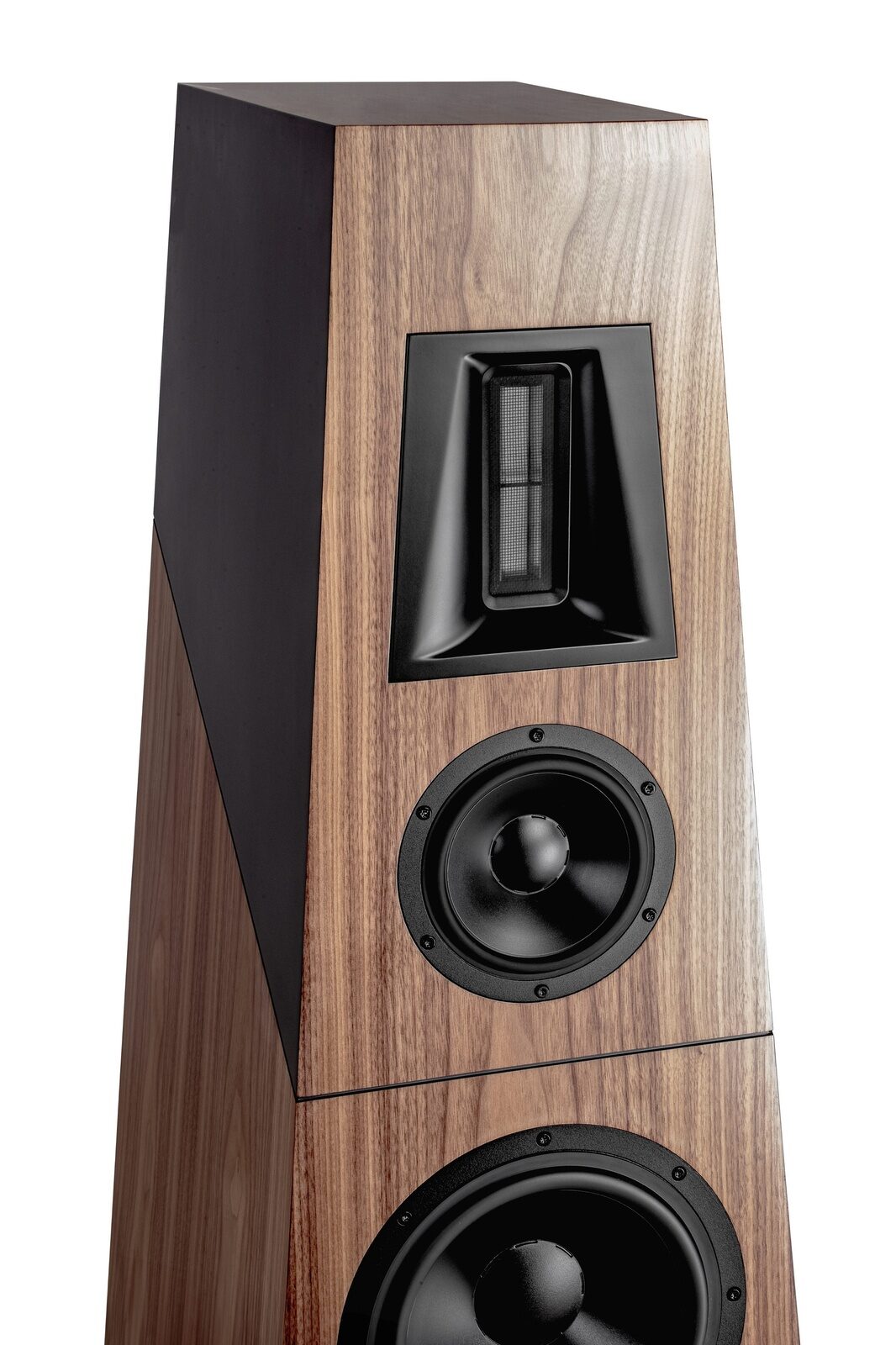

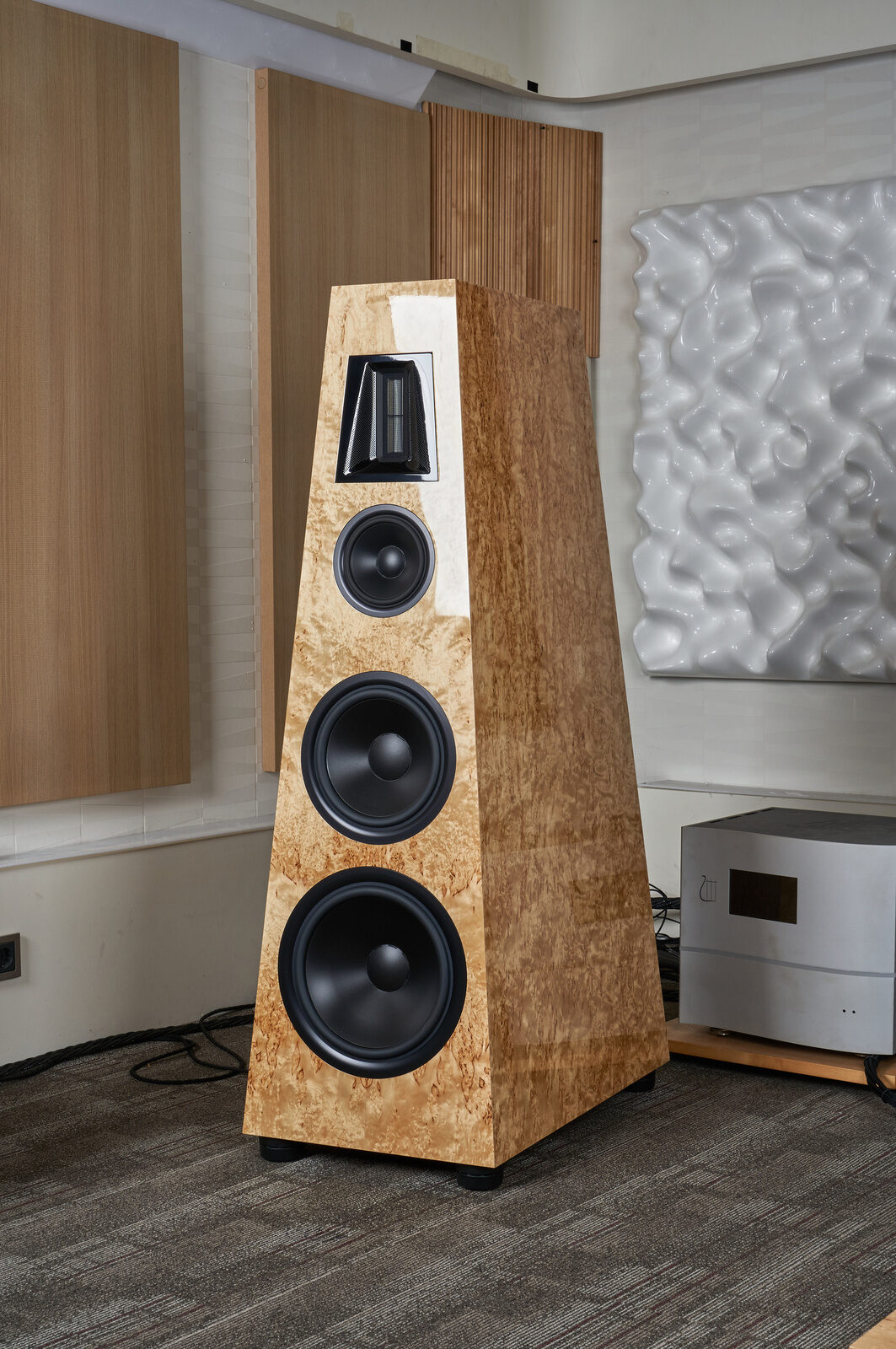

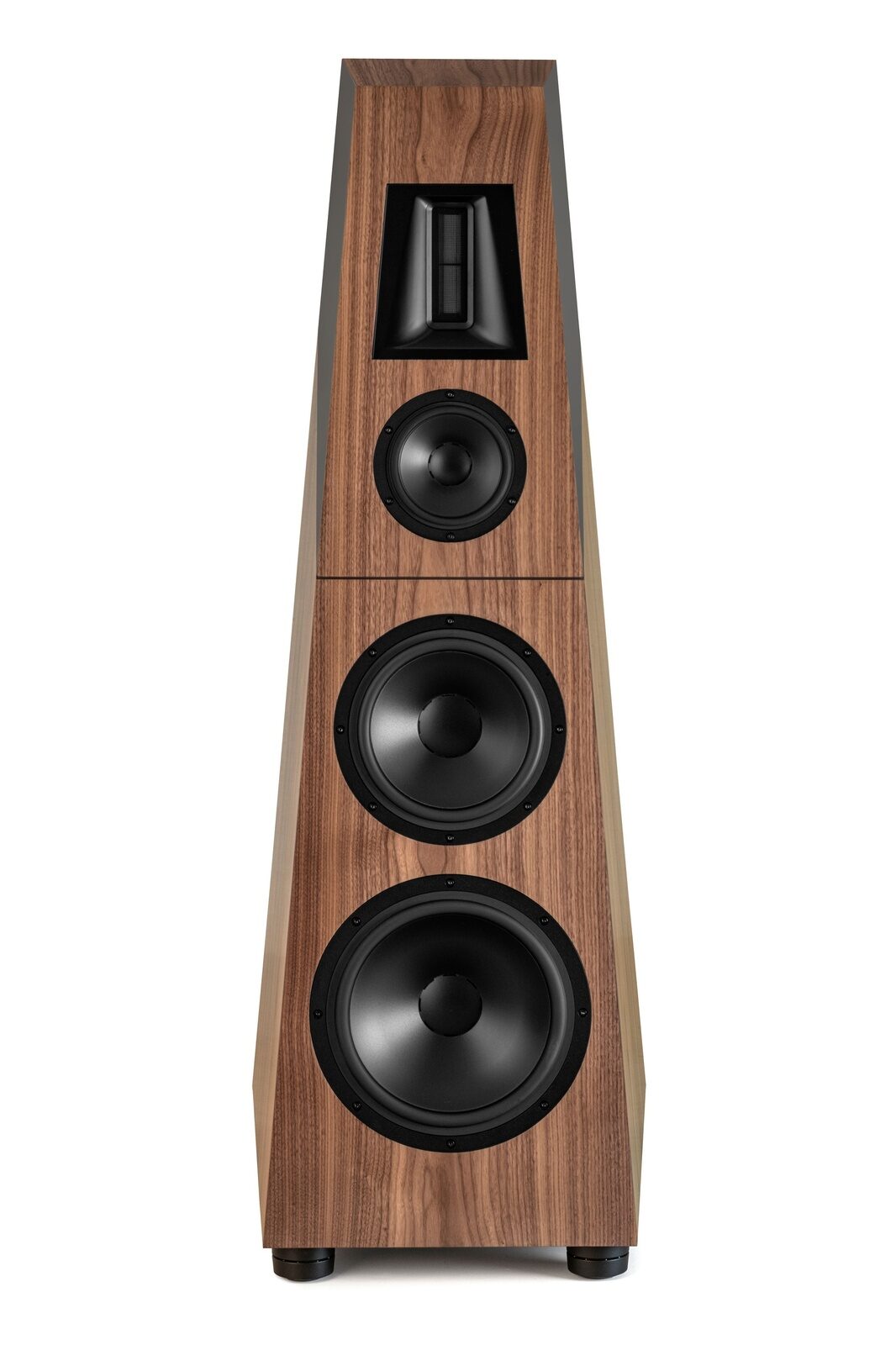

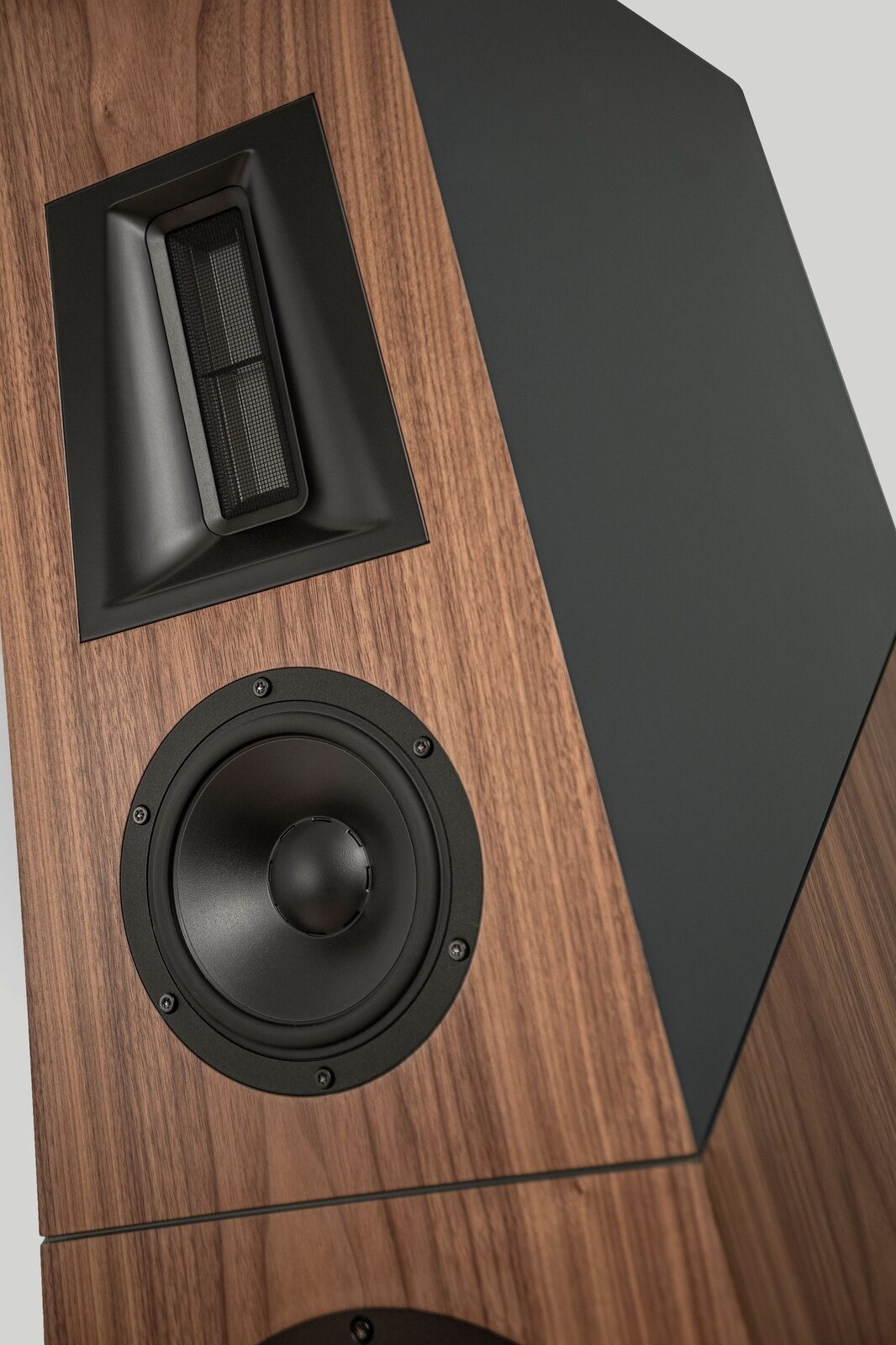

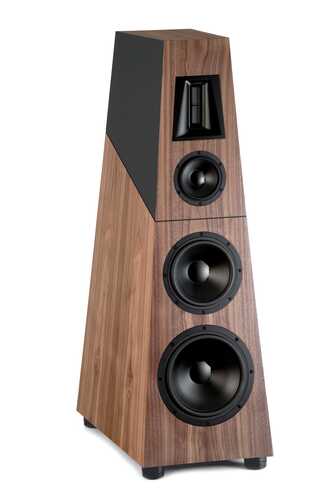

The Kawero Minal front baffle has a 12“ Audiotechnology woofer (ported), 10“ Audiotechnology woofer (closed box), a 6,5“ Audiotechnology midrange and our first inhouse ribbon tweeter in a FEM designed waveguide. All drivers are custom made.

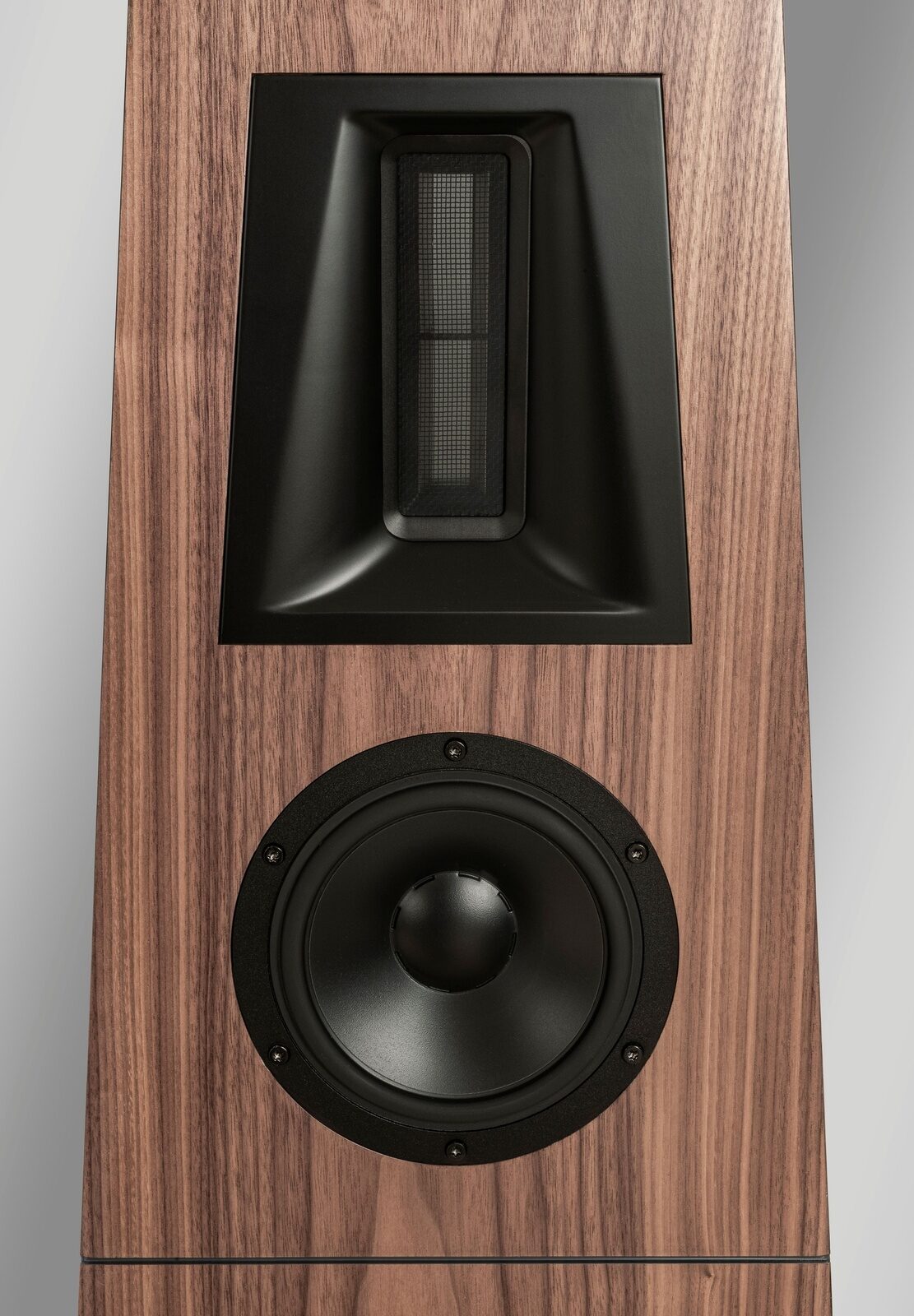

Our new ribbon tweeter has a special designed silver transformer from the famous High End company Ypsilon electronics (Greece).
The crossover is build with the finest Duelund CAST Cu components. It is a flat crossover design with focus of optimal behavior in the time and frequency domain.

Kawero!® Minal

features and pricing
all prices ex works Untergriesbach, Germany

Standard Version:

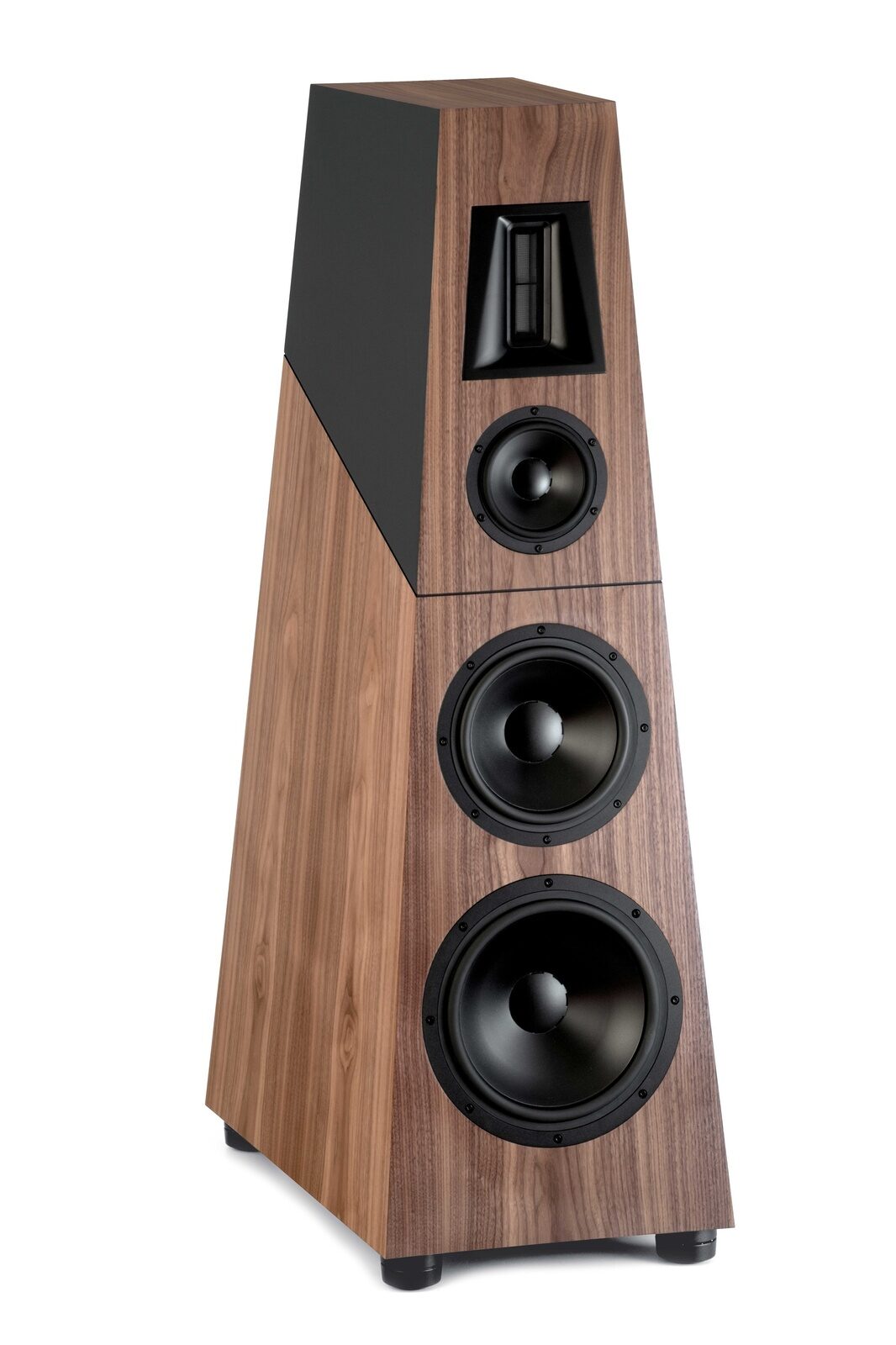

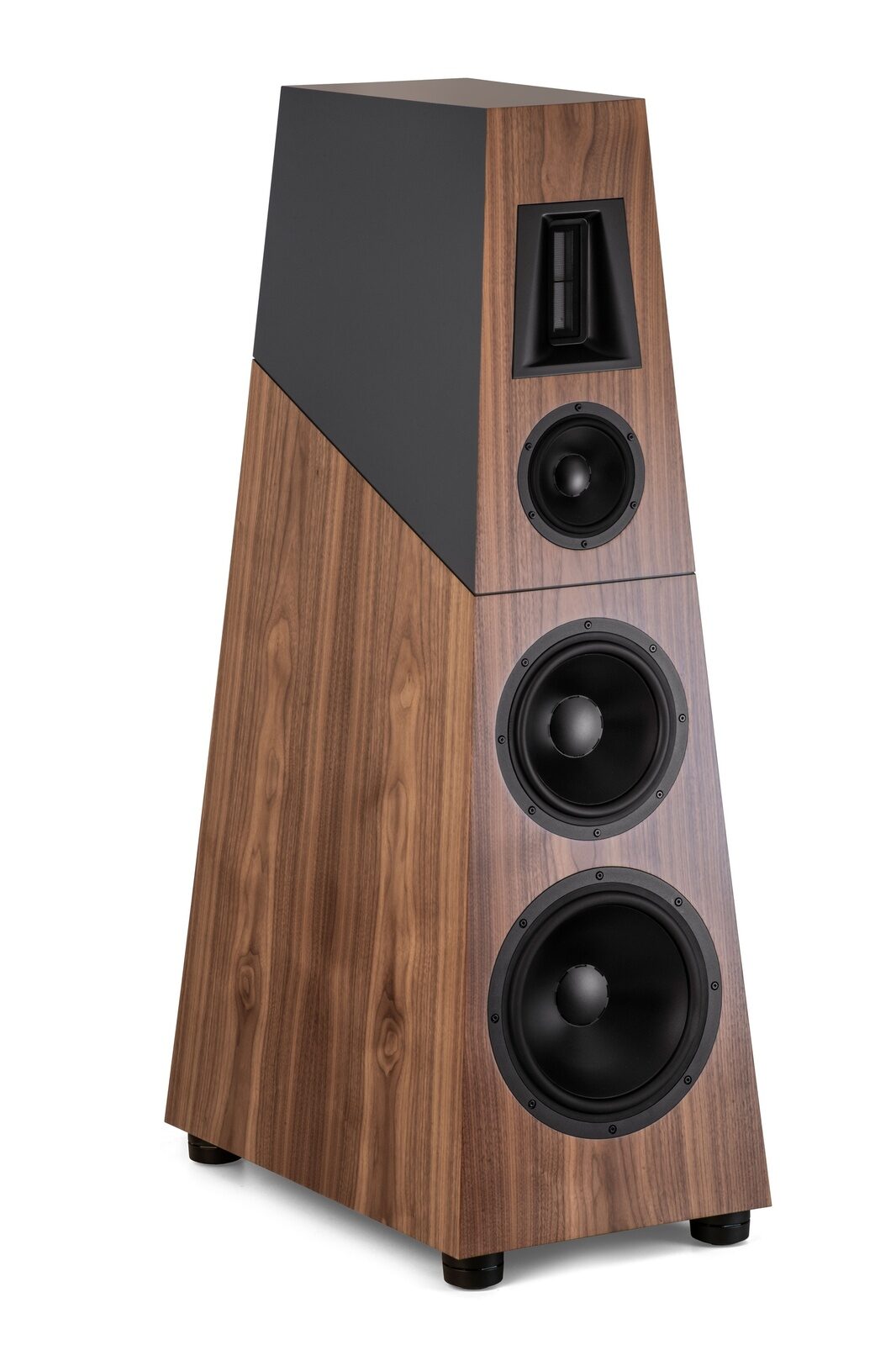

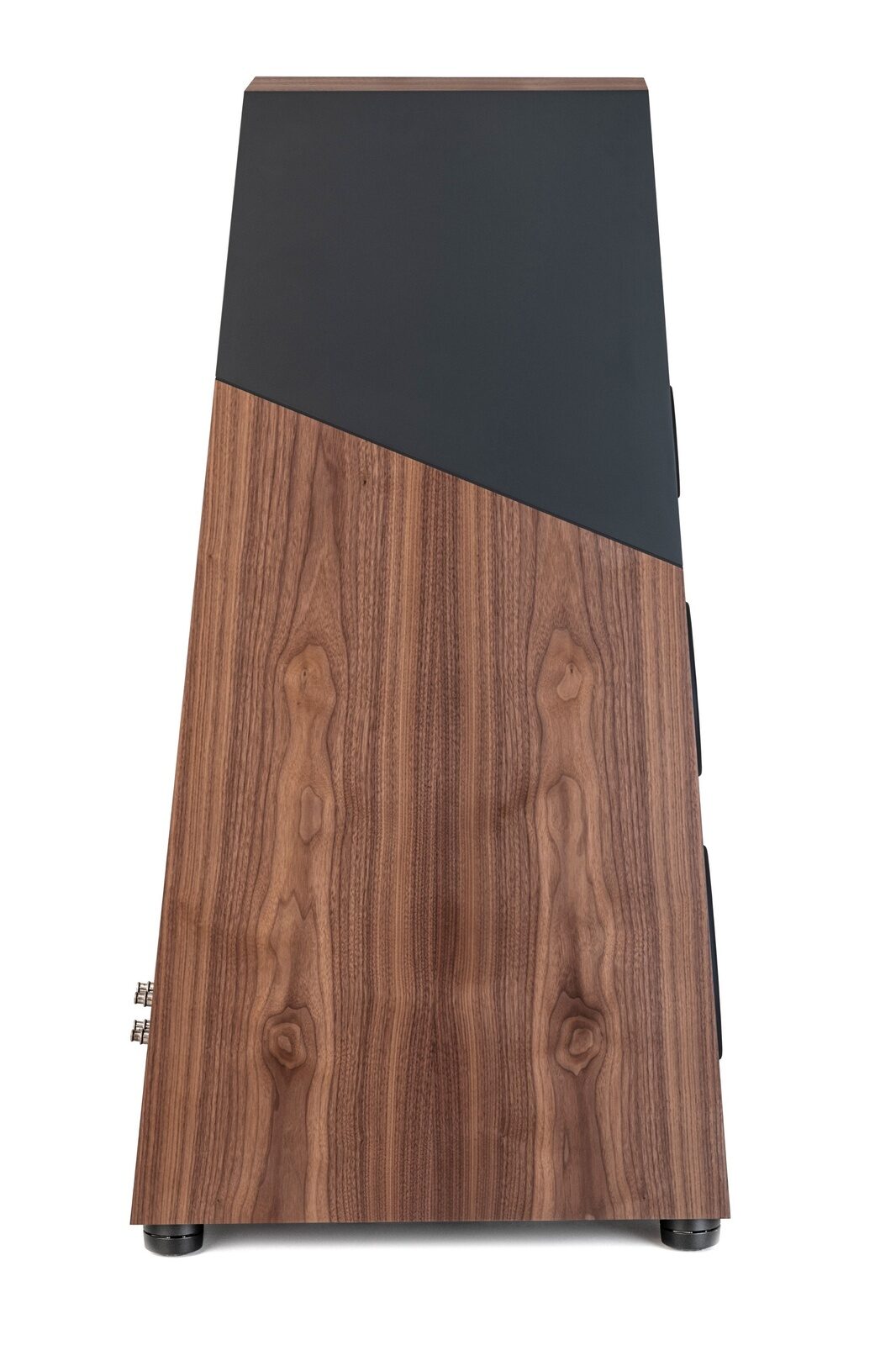

Speaker enclosure in standard veneer or standard colour silk matt lacquered.Optional side panel of the upper enclosure in a contrasting colour

Features

• The new Minal speaker is a 3 way - 4 driver system

• The cone drivers are all custom made versions from famous manufacturer Audiotechnology

• They have large voice coils and very high magnetic force. Additionally they have a low moving mass to achieve a high efficiency

• The cone material is mineral filled Polypropylen

• The lower woofer is a 12“ version in a special ported enclosure

• The upper woofer is a 10“ in a closed box environment

• The 6,5“ midrange is housed in a closed cabinet with a special absorbing chamber

Vergrößern

Technical Specifications

• The tweeter is a new proprietary design with the support of Ypsilon Electronics in Greece

• Frequency response is 30 Hz to 30 kHz

• Impedance is 4 ohm

• Sensitivity around 93dB@2,83V in 1 m

• Height: 55.63 inch (141,3 cm)

• Width: 20.79 inch (52,8 cm)

• Depth: 29.13 inch (74 cm)

• Weight: 390 lbs (177 kg)
